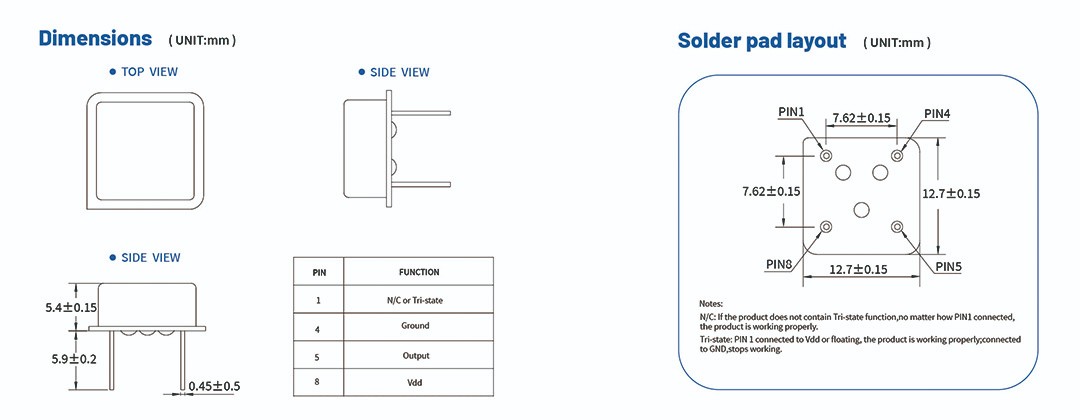

| 封裝規(guī)格[mm]: | 12.7×12.7×5.4 |
|---|---|
| 頻率范圍[MHz]: | 1 ~ 100 |
| 工作電壓 [Typ.]: | 1.8V, 2.5V, 3.3V, 5.0V |
| 工作溫度范圍: | -20℃ ~ +70℃, -40℃ ~ +85℃ |
| 輸出模式: | CMOS |
| RoHS And 無鉛: | |
| 資料下載: | Datasheet |
| 商城購買: | |
Item | Symb. | Min. | Typ. | Max. | Unit | Notes |
Frequency Range | Freq. | 1.000 | 100.000 | MHz | ||
Operating Temperature | T_use | -20 | +70 | ℃ | ||
-40 | +85 | ℃ | ||||
Storage Temperature Range | T_stg | -55 | +125 | ℃ | ||
Supply Voltage | Vdd | 1.62 | 1.8 2.5 3.3 5.0 | 5.5 | V | |
Output Load | L_CMOS | 15 | pF | |||
Current Consumption | Icc | 25 | mA | 1MHz ≤ Freq. ＜ 40MHz | ||
60 | 40MHz ≤ Freq. ＜ 80MHz | |||||
80 | 80MHz ≤ Freq. ＜ 100MHz | |||||
Duty Cycle | SYM | 40 | 60 | % | 50 % Vdd level, L_CMOS ≤ 15 pF | |
Rise / Fall Time | TR / TF | 5 | nS | 10% Vdd to 90% Level | ||
Start-up Time | T_str | 10 | mS | To 90% of Final Amplitude | ||
High output voltage | VOH | 0.9Vdd | V | |||
Low output voltage | VOL | 0.1Vdd | V | |||
Enable Voltage High (Logic 1) | VIH | 0.7Vdd | V | Output will be disable if OE is Logic 0 Output will be enable if OE is Logic 1 or open | ||
Enable Voltage Low (Logic 0) | VIL | 0.3Vdd | V | |||
Aging | f_age | ±3 | ppm | 1st. Year at 25℃ |
Operating Temperature Range | Frequency Stability | |||
±20ppm | ±25ppm | ±30ppm | ±50ppm | |
-20℃ to +70℃ | ▲ | ★ | ★ | ★ |
-40℃ to +85℃ | ▲ | ★ | ★ | |
★：Available ▲：Conditional All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change. | ||||
|
需求描述 | |||||||
選擇需要的封裝規(guī)格及產品系列： 12.7×12.7mm；OA Series 選擇需要的頻率： 10.000MHz 選擇需要的工作電壓： 3.3V 選擇需要的頻率精度（at 25℃）： ±20ppm 選擇需要的工作溫度范圍： -40℃~+85℃ 選擇需要的頻率&溫度特性： ±30ppm 您需要的產品是： OA Series 10.000MHz 3.3V ±20ppm@25℃ ±30ppm@-40~+85℃ | |||||||
| 標稱頻率[MHz] | |||||||
| 1.000 | 1.8432 | 2.000 | 2.048 | 2.500 | 3.6864 | 4.000 | 4.096 |
| 4.9152 | 5.000 | 6.000 | 6.144 | 7.3728 | 7.680 | 8.000 | 8.192 |
| 9.8304 | 10.000 | 11.0592 | 11.2896 | 12.000 | 12.288 | 13.000 | 13.560 |
| 14.7456 | 16.000 | 16.384 | 18.432 | 19.200 | 19.440 | 20.000 | 22.5792 |
| 24.000 | 24.576 | 25.000 | 25.000625 | 25.175 | 26.000 | 27.000 | 28.63636 |
| 29.4912 | 30.000 | 30.720 | 32.000 | 32.768 | 33.000 | 33.300 | 33.330 |
| 33.333 | 33.3333 | 33.33333 | 33.333333 | 36.000 | 37.125 | 37.400 | 38.400 |
| 40.000 | 45.000 | 45.1584 | 48.000 | 49.152 | 50.000 | ||
